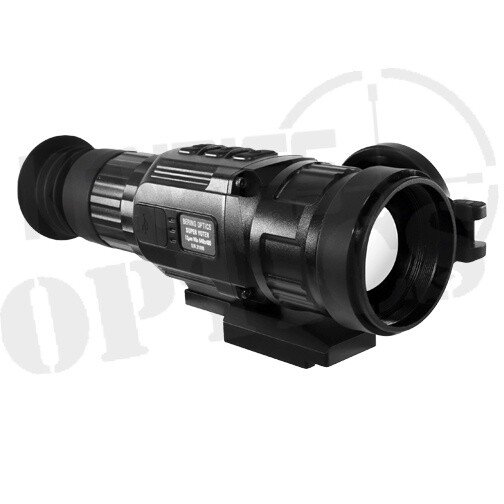

Bering Optics Super Yoter R 2-8x25mm Thermal Rifle Scope (BE46025L)

Bering Optics Super Yoter R 1.5-6.0X25mm Thermal Rifle Scope (BE46025L)

The Bering Optics SUPER YOTER R™ Thermal Weapon Sight features the advanced 12μm Vanadium Oxide (VOx) 640x480 core resolution with 50Hz refresh rate that makes the scope ideal for predator control at medium- and long-range distances. The wide range of controls and capabilities allow the user to adapt the scope to various conditions and personal preferences. There are 8 reticle patterns including 3 BDC reticles, along with four color options for each reticle pattern. The sight operation is controlled with three buttons allowing easy selection of the options.

A unique adjustable Stradiametric Rangefinder can be set to the height of the animals, thus increasing the overall usefulness of this

feature. Other useful features of the SUPER YOTER R™ is a wide selection of the image adjustment options as well as the image background adjustment and calibration.

The SUPER YOTER R™ is nitrogen-purged, is water-, dust- and shock-proof and shock-rated for .338 Win Mag., 30-06 Spring Mag. The SUPER YOTER R™ is action ready in any environment or light conditions, including conditions when the environmental obscurants such as smoke, dust, haze, are present.

Features

·        Superior for predator control at medium- and long-range distances

·        Excellent performer in high humidity conditions

·        Picture-in-Picture function- 2X multiplied image on a top of the display

·        Automatic shatter based thermal VOx core with Auto- or Manual calibration

·        Switchable image polarity: White Hot / Black Hot / Red Hot / Colored Hot

·        8 reticle patterns including 3 BDC reticles

·        4 color options for each reticle pattern

·        Precise W/E adjustment increments is 0.54” at 1X (native magnification) and just 0.14” at 4X multiplied image for BE46050L model

·        Manual control of the image sharpness and screen brightness

·        Manual control of the contrast

·        Manual control of the image background balance of white (Cool or Warm)

·        Ability to save 4 profiles of zeroing calibration data

·        Stradiametric Rangefinder function to estimate the distance to the targets of manually adjustable target’s height

·        A precise lens focusing mechanism

·        5V DC external power supply option via a Type-C USB port

·        Blind Pixel repair tool

·        Standby mode

·        Digital Compass

·        Inclinometer

·        Battery status indicator

·        Nitrogen purged

·        Video out

·        32Gb internal memory

·        Built-in internal recording function in .mp4 (video) and .jpeg (image) formats

·        Wi-Fi capable- allows media recording to the mobile device (iOS or Android App is required)

·        Quick-Detach (QD) Picatinny mount

·        4 years warranty on parts and labor

Specifications

Optical Magnification: 1.5x, 2.0x, 3.0x

Digital Magnification: 2X, 4X

Objective lens system: 25mm

Angular FOV at 1.0x (horizontal x vertical) 8.5° x 6.4°

Eye relief: 46 mm

Focus range: 1 to infinity yards

Diopter Adjustment, D     -5: +5

1.34” @1X (1.5x magnification)

0.96” @1X (2.0x magnification)

 0.54” @1X (3.0x magnification)

Core resolution: pxl 640×480

Pixel pitch: µm 12

Image refresh rate: Hz 50

Thermal Sensitivity (NETD):  mK ≤ 40

Display type and resolution pxl: OLED 1024×768

Start-up time, typical: 20 Seconds

Dimensions with QR mount approx: in / mm 7.5 x 2. 83 x 2. 36 / 190x72x60

Weight w/out batteries, approx.: oz/g 17.5 / 497

Power supply: 3V CR123 (two) or 3.7V rechargeable 16650 (two) or 5V DC USB C-type

Estimated battery life with two Lithium 3V CR123: 3.5 Hours

Operating temperature, typical: °F/°С 4° to +122° / -15° to +50°

Water intrusion: IP66
